Different Ways to Run Your Code

In this tutorial you will explicitly learn the difference between:

• seeing a Preview of your code for part of your app
• seeing all of your code run on a simulated device (or a physical device)

Both ways of running your code have advantages, depending on what you are trying to test.

Obtain the example project

This tutorial will be easier to understand if you have some code to try out while following along with this mini-tutorial.

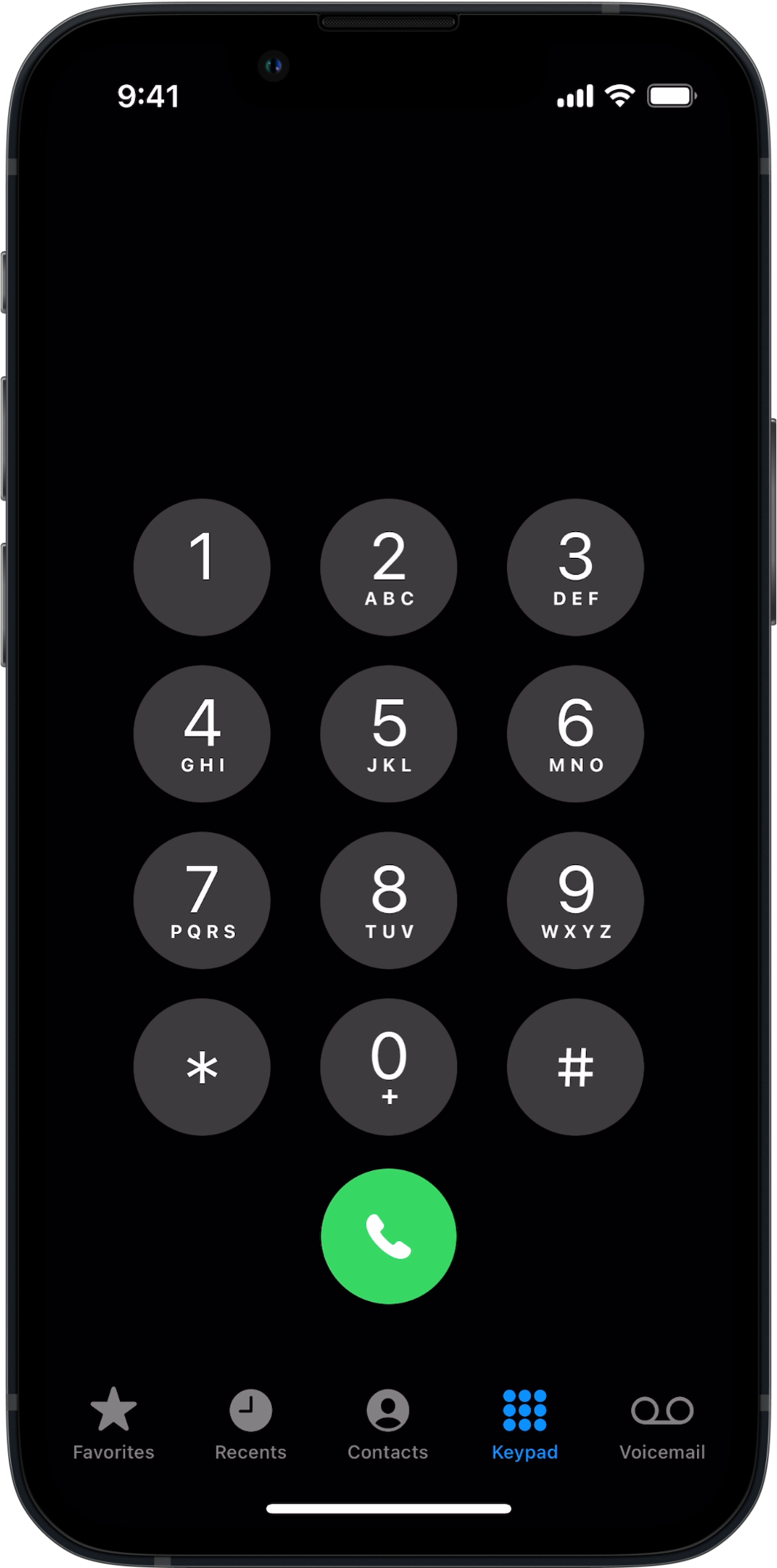

The PhonePrototype project is an “empty” version of the Phone app interface for iOS. What is meant by “empty”? Only the tab view at the bottom of the app’s interface has been implemented:

Please now fork and clone Mr. Gordon’s PhonePrototype starter project so you can try it out while reading this tutorial.

NOTE

This tutorial aligns with learning goal 7 – use that learning goal when summarizing what you’ve learned in your portfolio post for today’s class.

You are encouraged to take note of the keyboard shortcuts introduced in this tutorial: using them will make navigating Xcode easier and faster for you in the future.

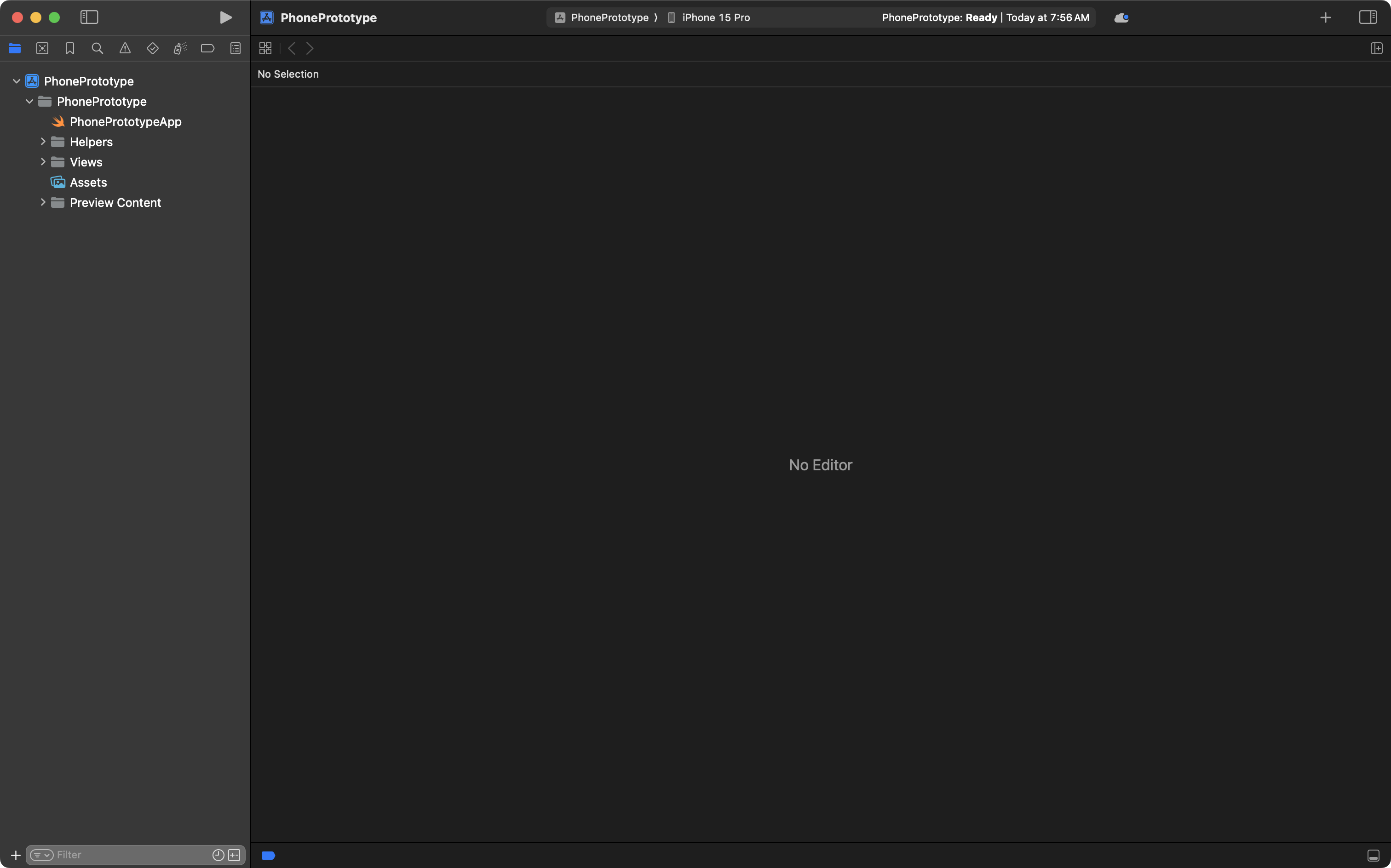

After cloning the project you will see something like this:

NOTE

Parts of this tutorial were written a year ago, so the run destination shows as iPhone 15 Pro, whereas the run destination on your computer will likely show as iPhone 16 Pro. This is completely OK – it will not affect your ability to follow this tutorial.

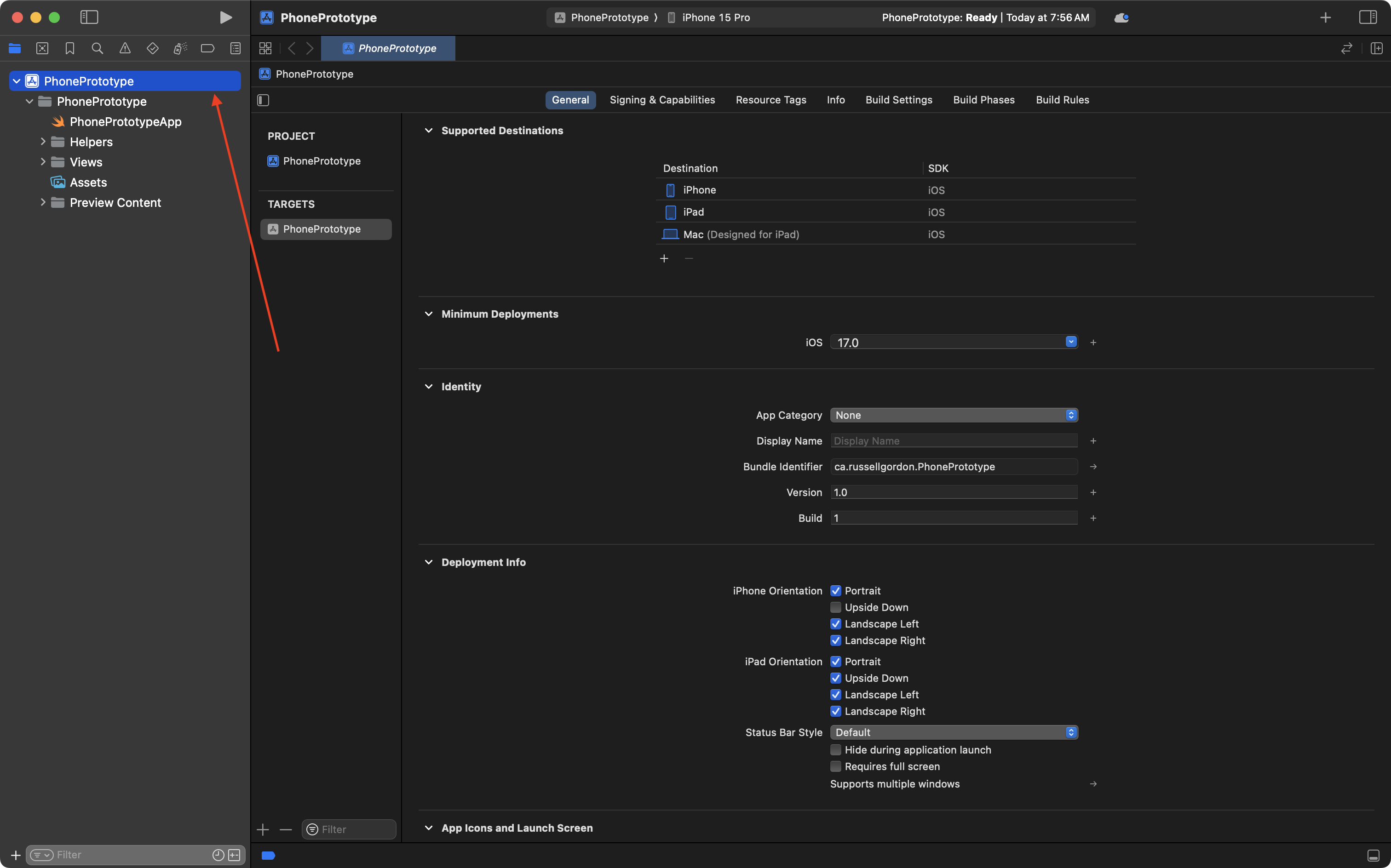

Select the blue PhonePrototype project file:

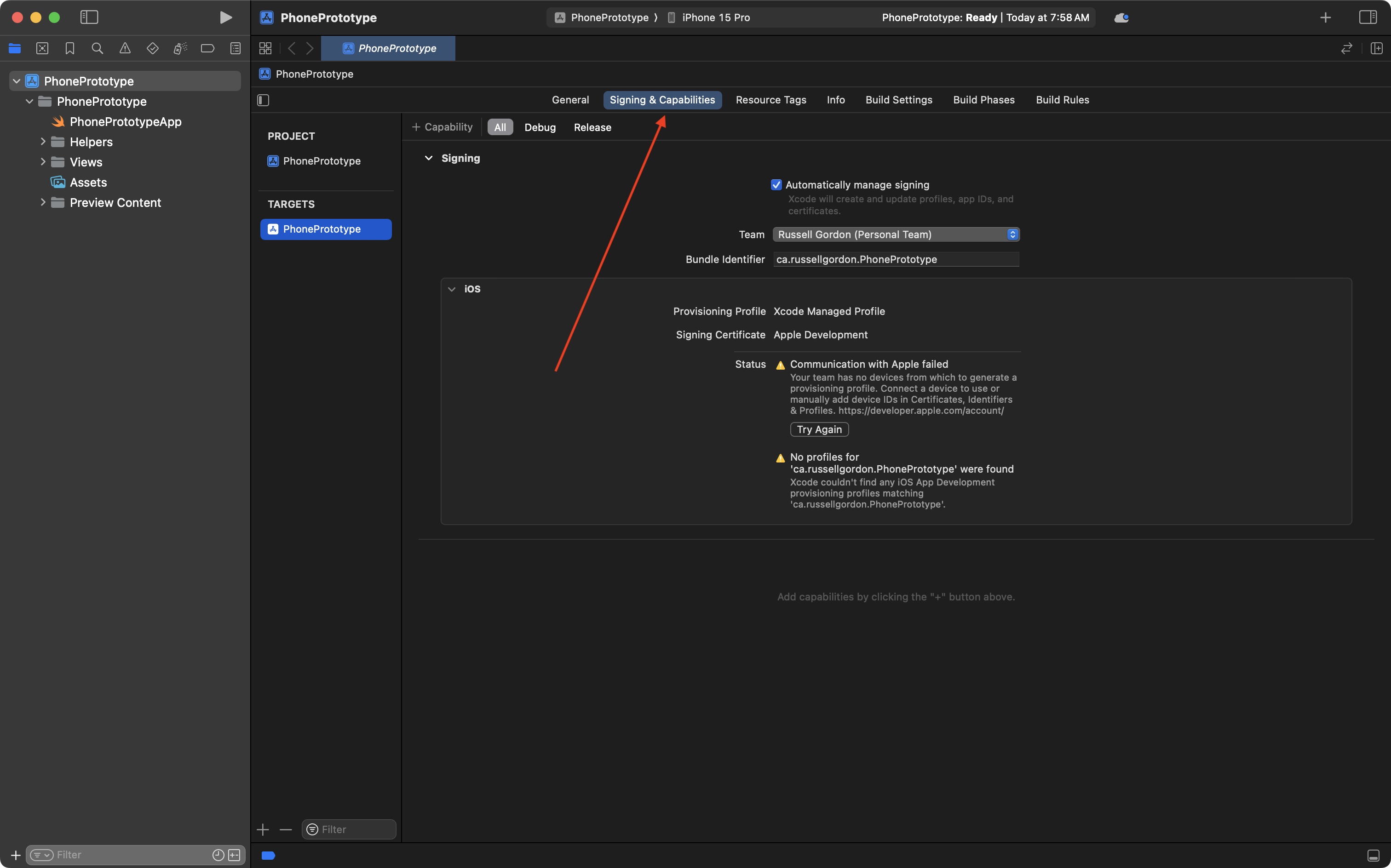

Then select the Signing & Capabilities tab:

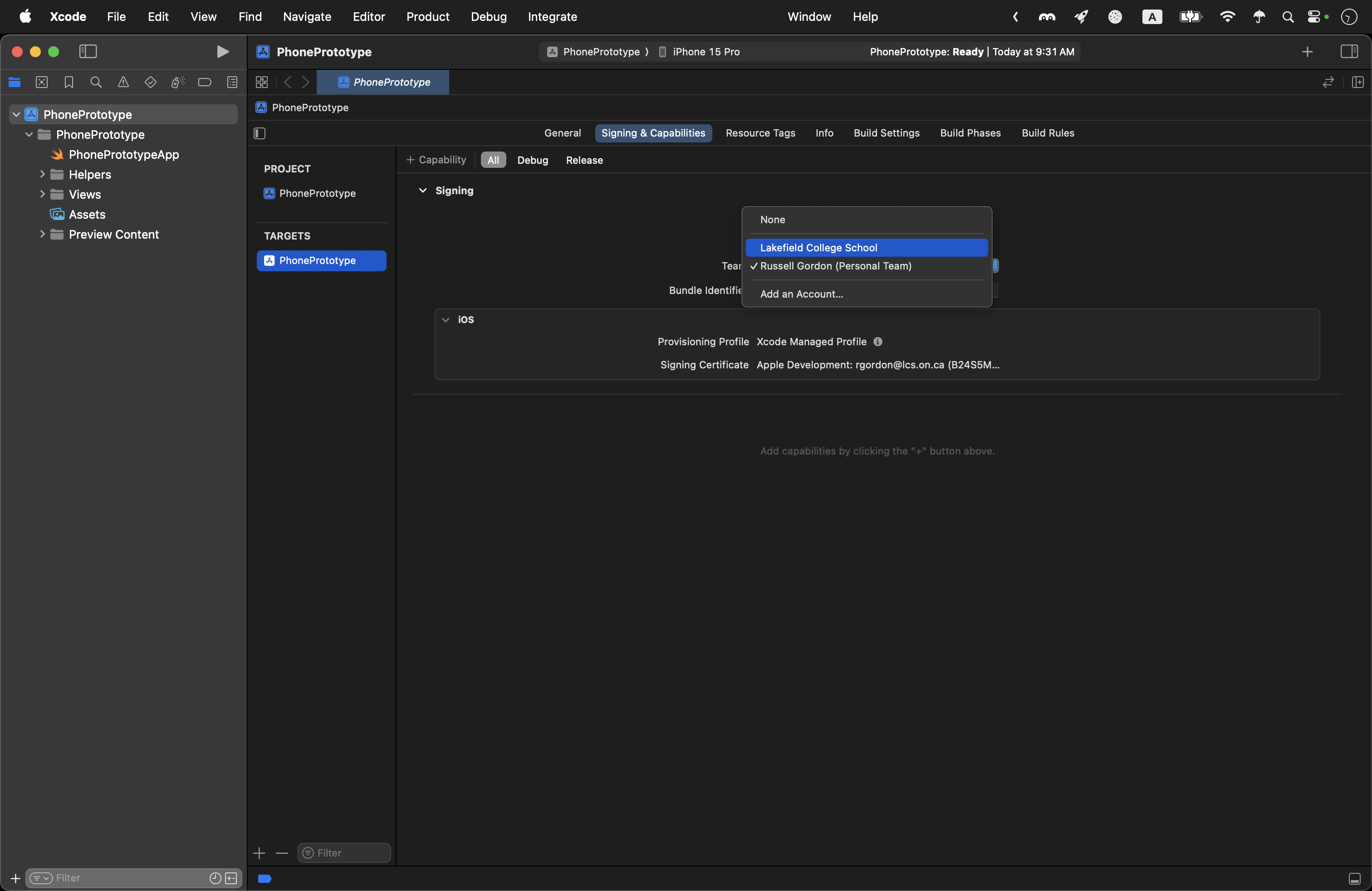

Finally, from the drop-down for Team, select Lakefield College School:

Now, you should be able to preview and run the project in the Simulator. We will learn how to do this now…

Showing the Preview or Canvas

Press Command-1 to be sure you have the Project Navigator open, then expand the Helpers and Views folders, then select the LandingView file. You should see something like this:

If you do not see the Preview section at right (sometimes called the Canvas) then you can press Option-Command-Return on your keyboard, or use the mouse pointer as shown.

The Preview or Canvas area will appear and disappear:

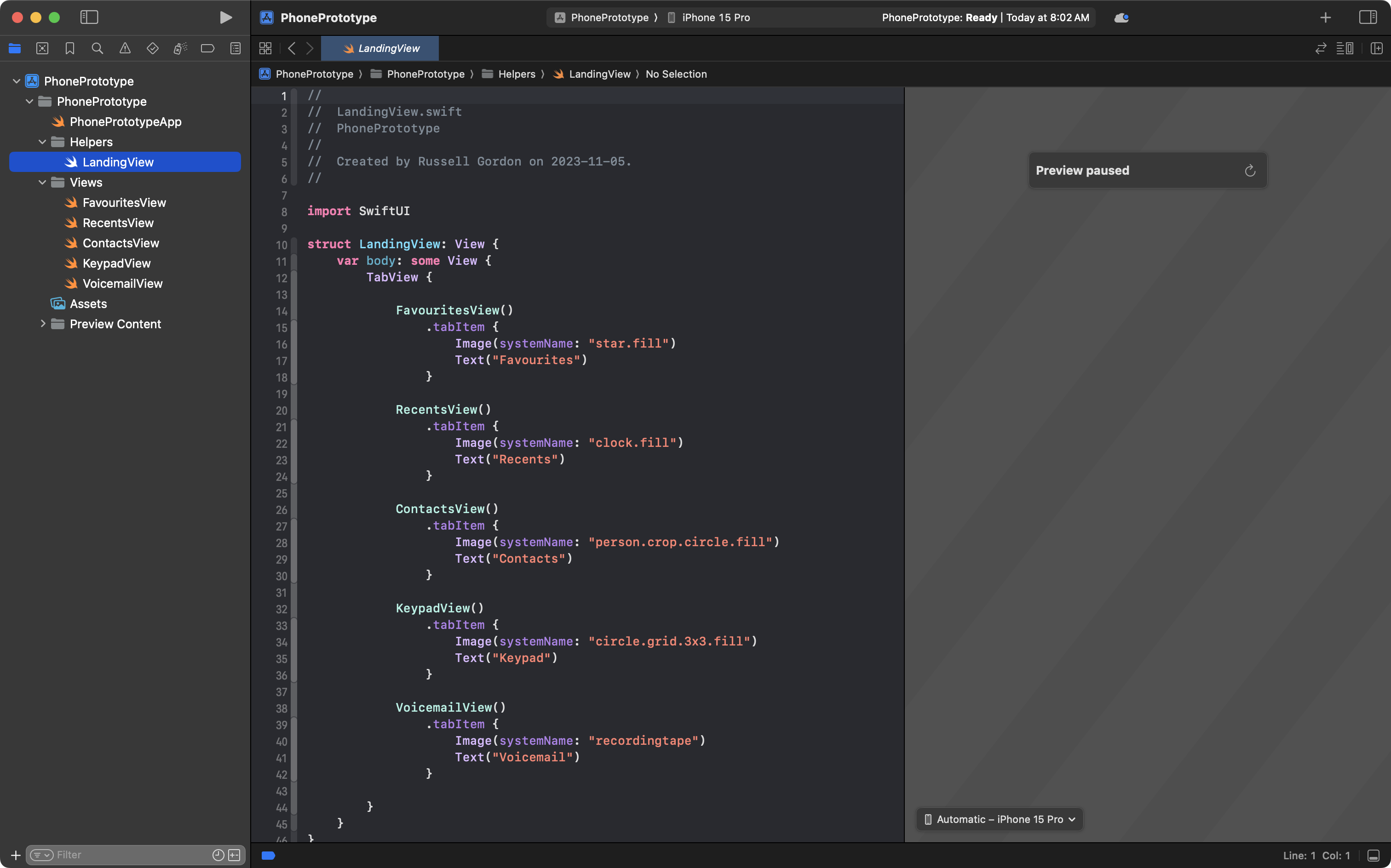

Starting the Preview

The purpose of the Preview window is to show just the contents of the single view, or file, you are currently working on. This makes it easy to rapidly iterate on (improve) the interface or logic you are authoring within a single view.

To start the Preview, click the ↻ icon, or use the Option-Command-P keyboard shortcut:

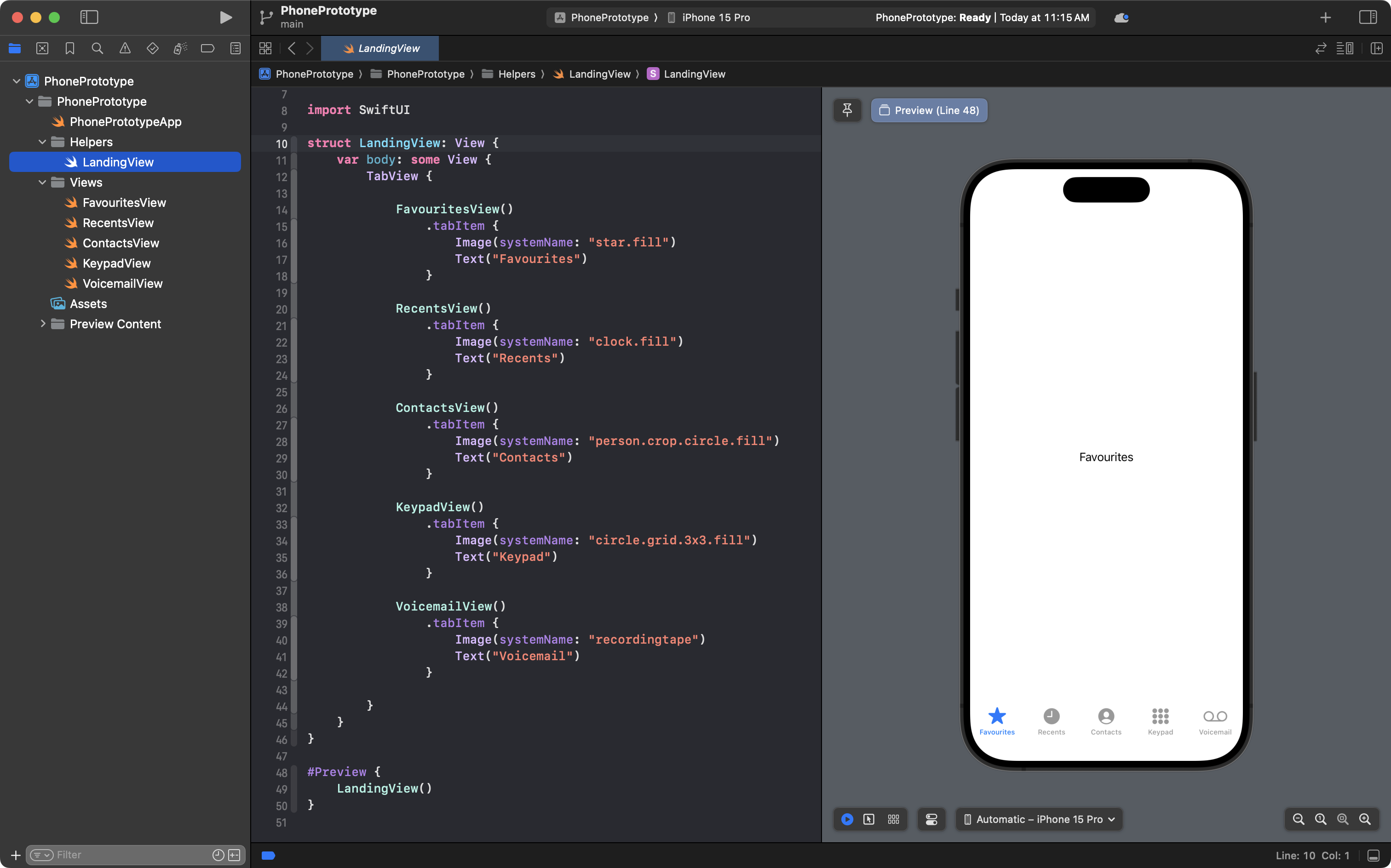

After about 10 seconds (or a few minutes if you have an older computer) you will see the preview appear:

TIP

If you know you have an older computer, start the Preview window in an Xcode project as soon as you arrive to class (or a few minutes before you want to start coding).

Once the Preview window has loaded the first time, updates after changing code will appear relatively quickly.

Using the Preview

As mentioned above, the Preview window shows a single view or file at a time.

It is code like the following that creates the preview:

#Preview {
    LandingView()
}

In this case, the preview creates an instance of the LandingView structure.

As you can see, the LandingView structure contains only a TabView stucture:

struct LandingView: View {
    var body: some View {
        TabView {

            FavouritesView()
                .tabItem {
                    Image(systemName: "star.fill")
                    Text("Favourites")
                }

            RecentsView()
                .tabItem {
                    Image(systemName: "clock.fill")
                    Text("Recents")
                }

            ContactsView()
                .tabItem {
                    Image(systemName: "person.crop.circle.fill")
                    Text("Contacts")
                }

            KeypadView()
                .tabItem {
                    Image(systemName: "circle.grid.3x3.fill")
                    Text("Keypad")
                }

            VoicemailView()
                .tabItem {
                    Image(systemName: "recordingtape")
                    Text("Voicemail")
                }

        }
    }
}

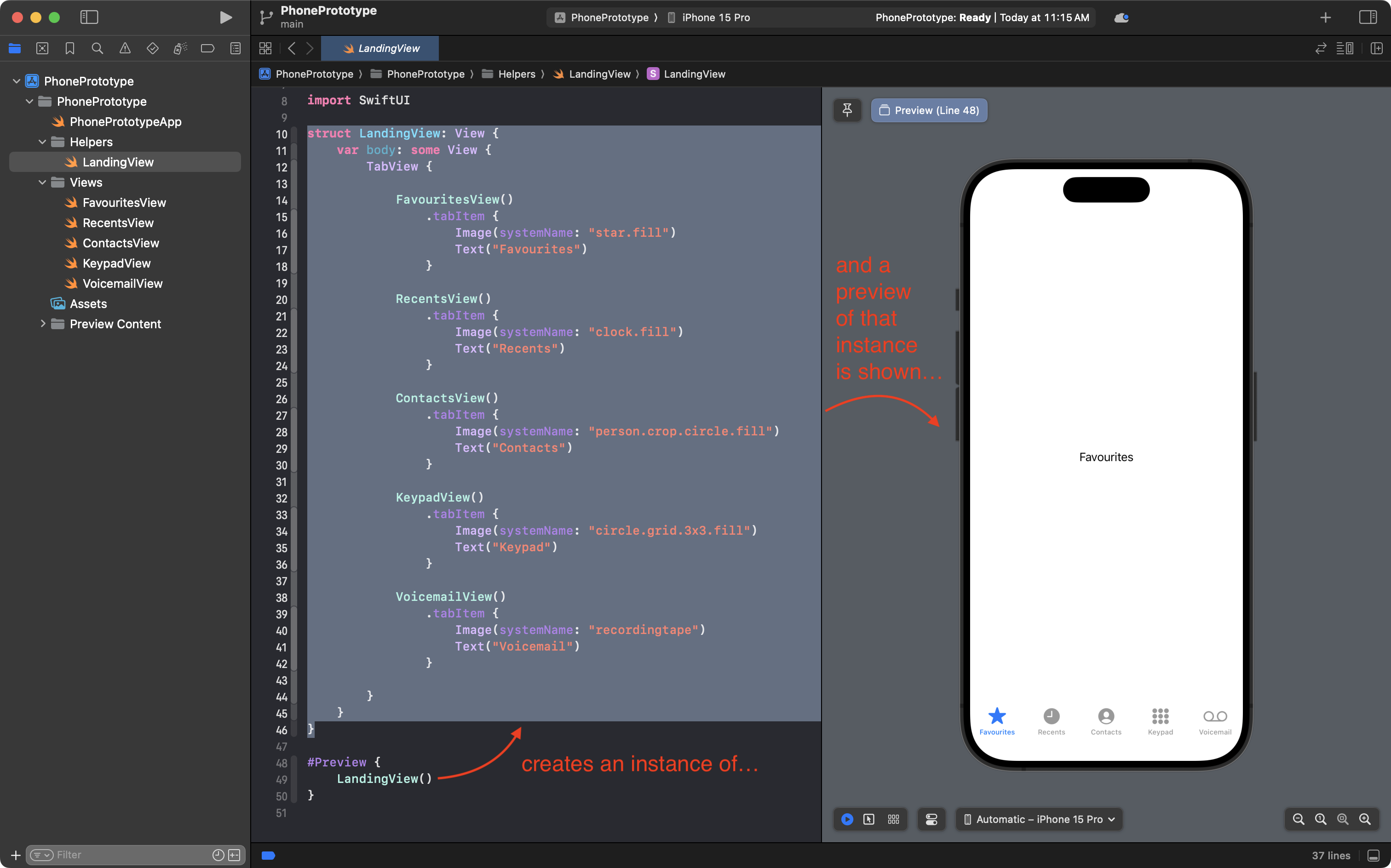

Here is an illustration of the flow:

Previews vs. Simulator

If we click through the different views of the app, we can see each file in turn appear in the Previews area:

This is fine if we really do just want to see each view on it’s own.

What if, however, we want to test the app as a whole?

In that case, we can run the app in the full Simulator.

Running an app in the Simulator

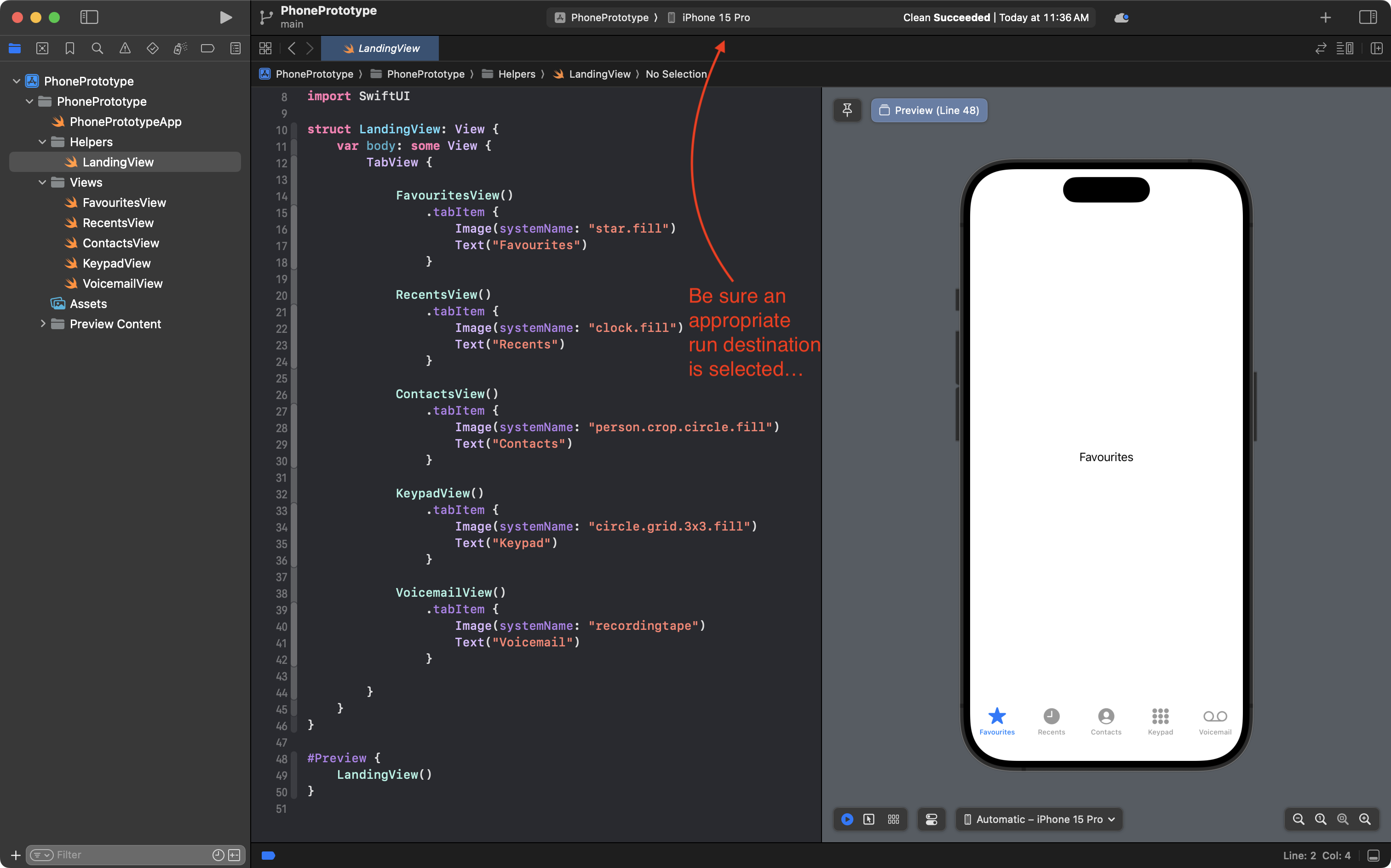

To run an app in the Simulator, first check that you have an appropriate run destination selected. In this case, the app will run within the iPhone 15 Pro simulator, but you can also use the iPhone 16 Pro simulator, or really any other simulated device that is available:

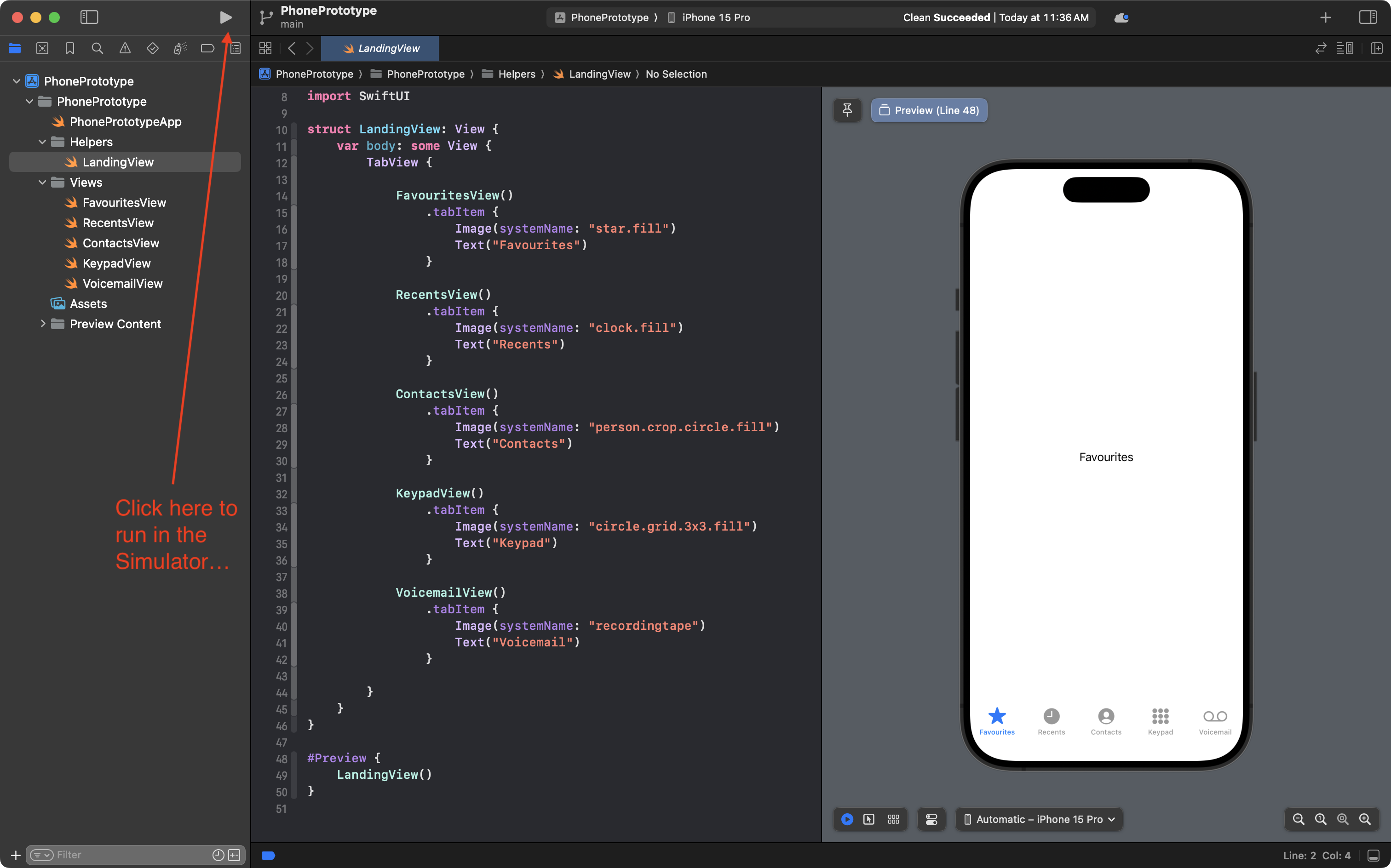

Then to run the app in the full Simulator, press Command-R or click the ▶️ icon in the Xcode toolbar:

After a moment, you will see the app appear in the Simulator:

TIP

If you have an older computer, starting the Simulator will take some time.

However, after the Simulator is loaded for the first time, if you keep it running, the next time you run your code, the new version of your app will appear in the Simulator much more quickly.

To be clear, to keep the Simulator running, do not click the red button in the toolbar when you are finished testing the current version of the code in your app. Just return to Xcode, make whatever code changes you think are necessary, then re-run the app in the simulator using Command-R.

It is also possible to run your code on your own phone, if you wish. Sometimes that is absolutely necessary (such as when testing an app that uses the camera, which does not exist in the simulator).

Note that the PhonePrototype app, running in the Simulator, is only showing FavouritesView, and not the full tab view.

Why is that? Let’s investigate…

App entry point

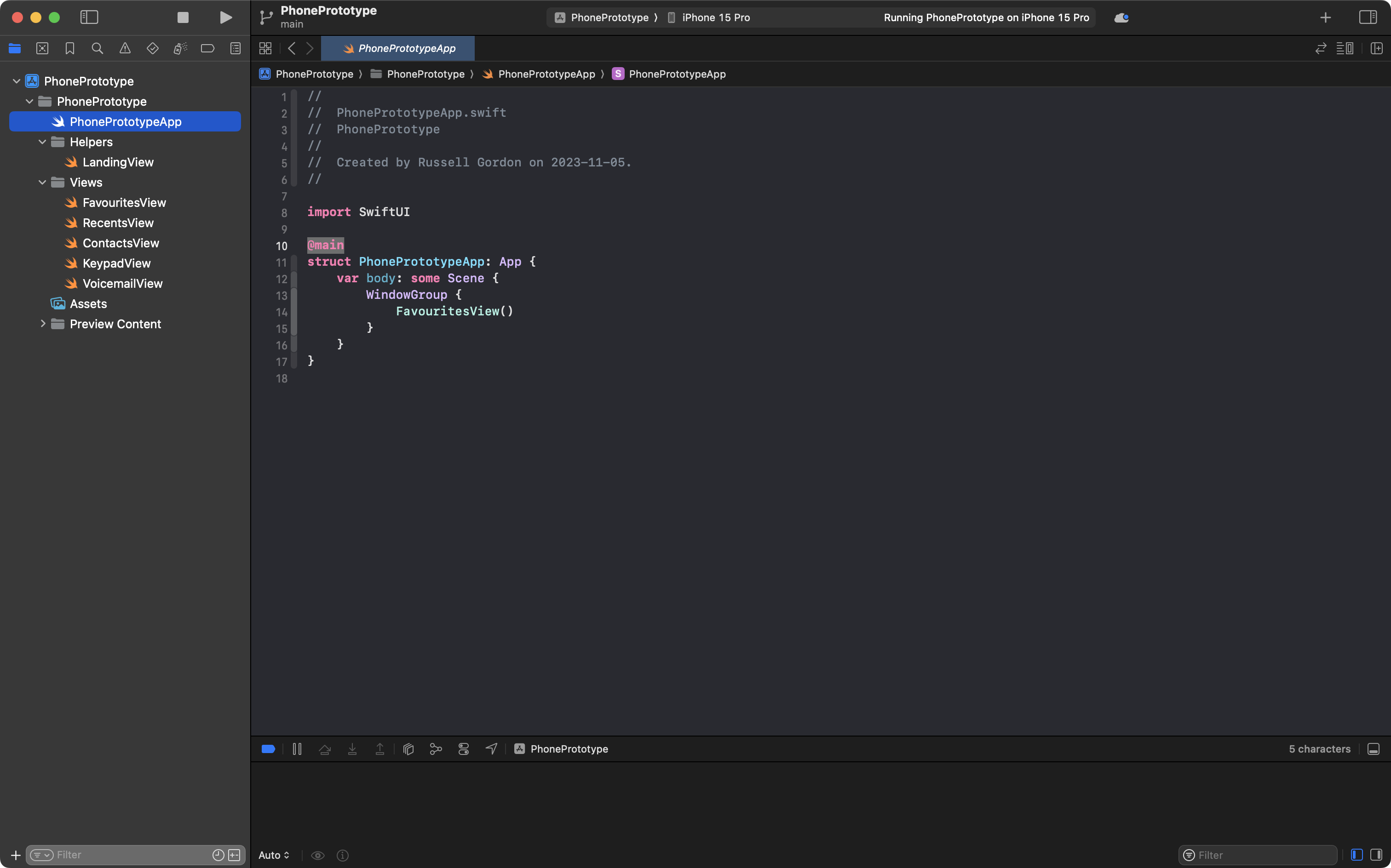

In the Project navigator select the PhonePrototypeApp file:

On line 10, you’ll note the following code:

@main

This is referred to as the app entry point.

In the lifecycle of a SwiftUI app running on a device (or a simulated device) this is where your app’s code “begins”.

The PhonePrototypeApp structure, in this example, eventually creates an instance of FavouritesView, as shown on line 14:

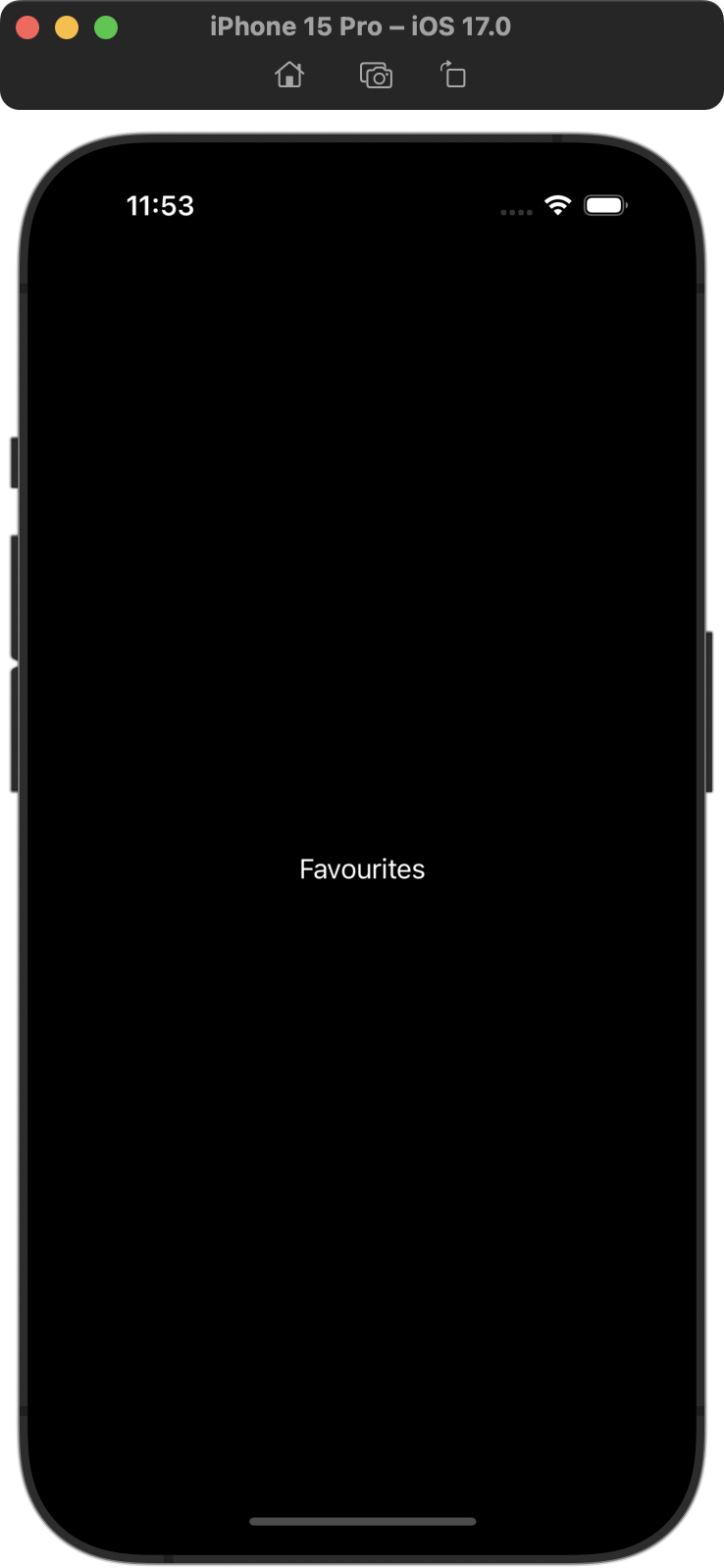

That is why when we run the app in the simulator, we see this:

The app entry point is creating an instance of FavouritesView.

For this particular app, that is not very useful.

We can create an instance of whatever structure we want when the app opens.

For example – although this is not particularly useful either – we could instead create an instance of RecentsView:

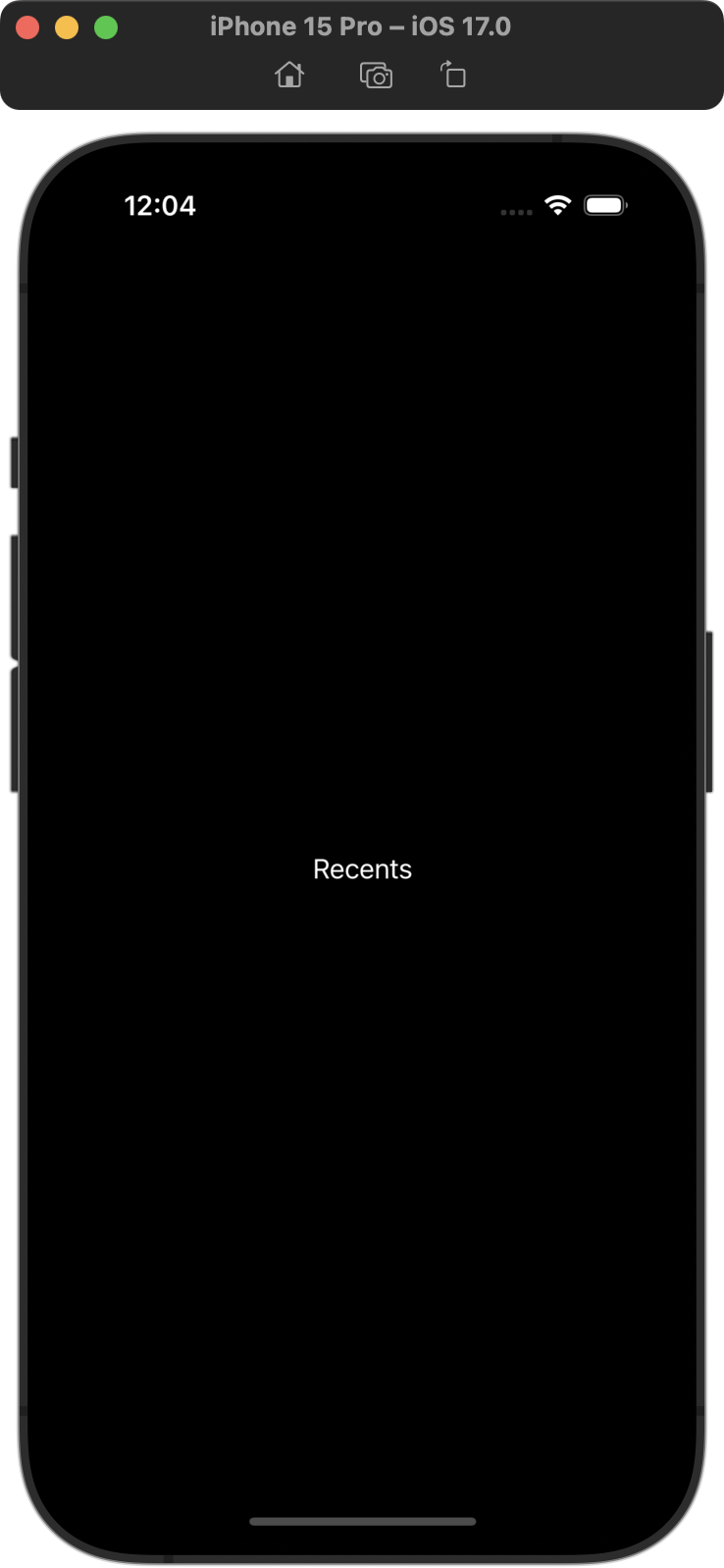

Then we when run the app again in the Simulator by pressing Command-R, we see this instead:

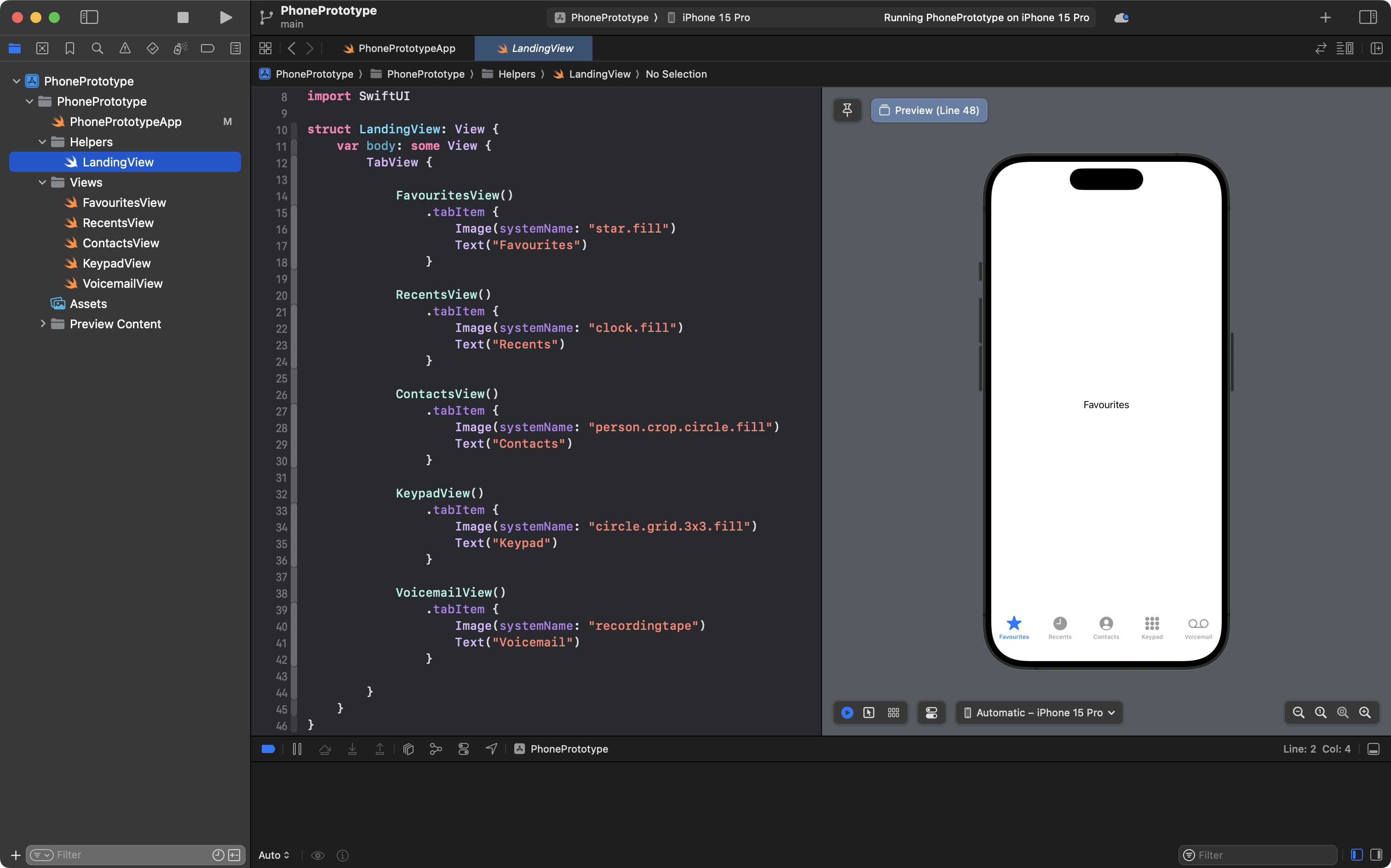

For this particular app, what we want to do is create an instance of LandingView because that is what (in turn) creates a TabView – that much is clear when we preview the LandingView file:

So if we want to see this same content when the app opens in the full simulator, this is the change should make at the app entry point:

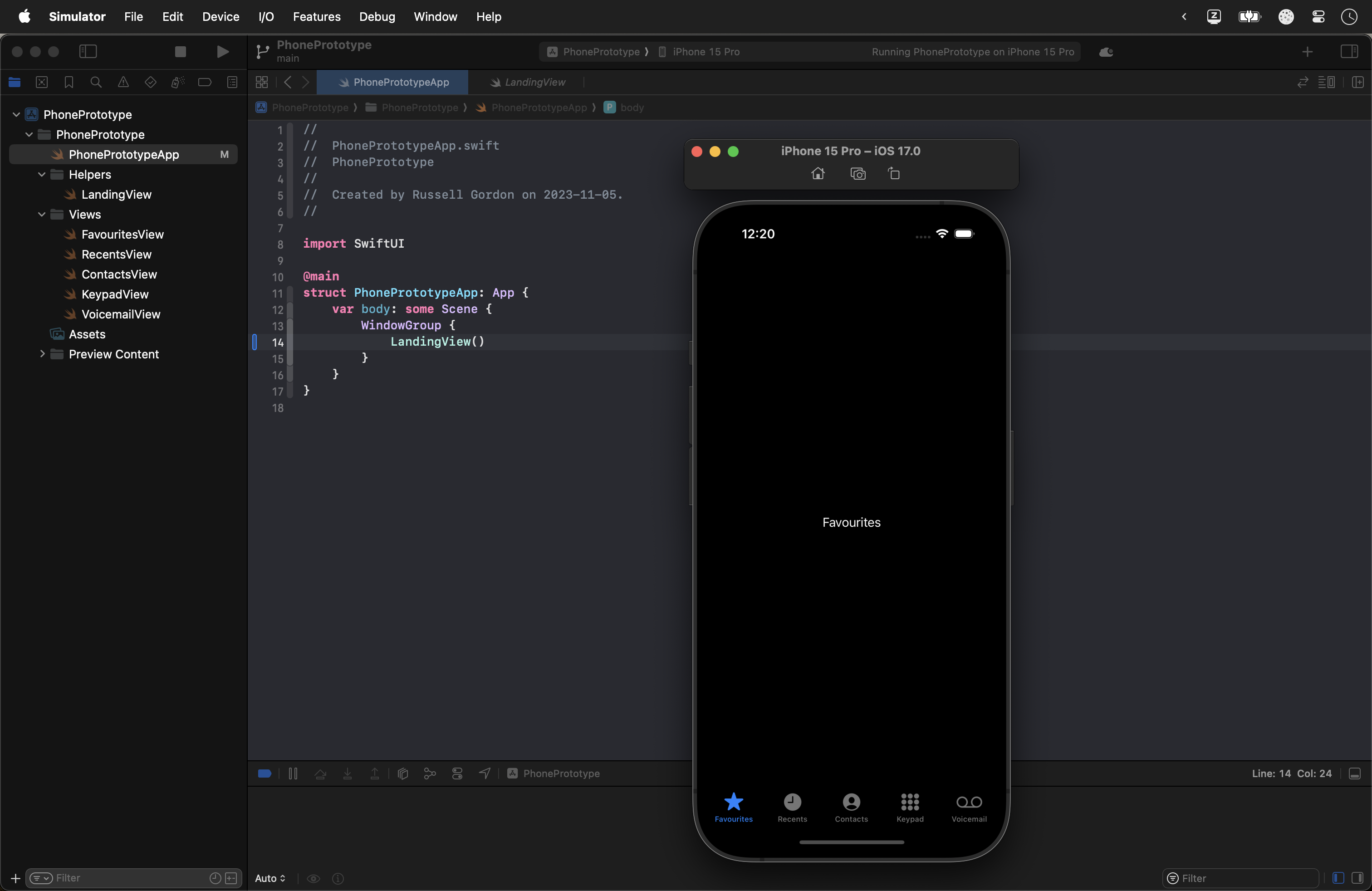

Conceptually, this is what we now have:

The app entry point creates an instance of LandingView.

LandingView creates a TabView.

Each tab item inside the TabView switches the app’s user interface to show an instance of one of these structures:

• FavouritesView
• RecentsView
• ContactsView
• KeypadView
• VoicemailView

Summary

When you want to test the functionality of just one view within your app, use the Previews window:

When you want to test how the app works as a whole, run it within the full Simulator (or test it on an actual physical device). When an app is run in the Simulator or on a device, the structure created by the app entry point file is what we will see:
